From supply to site,
done properly
Goose TraffIQ can supply and install traffic sensor equipment as a single service. Our engineers bring worldwide experience across sensor technologies and installation environments, so every site is installed to best practice — not just to what's convenient. Where a road space booking application is needed, we can also supply full Traffic Management (TM) drawings, helping your application move through smoothly rather than stalling on missing documentation.
- Full supply-and-install service, from one team
- Worldwide experience of installation best practice, across sensor types
- Full TM drawings supplied to support road space booking applications
- Test results and commissioning documentation handed over on completion

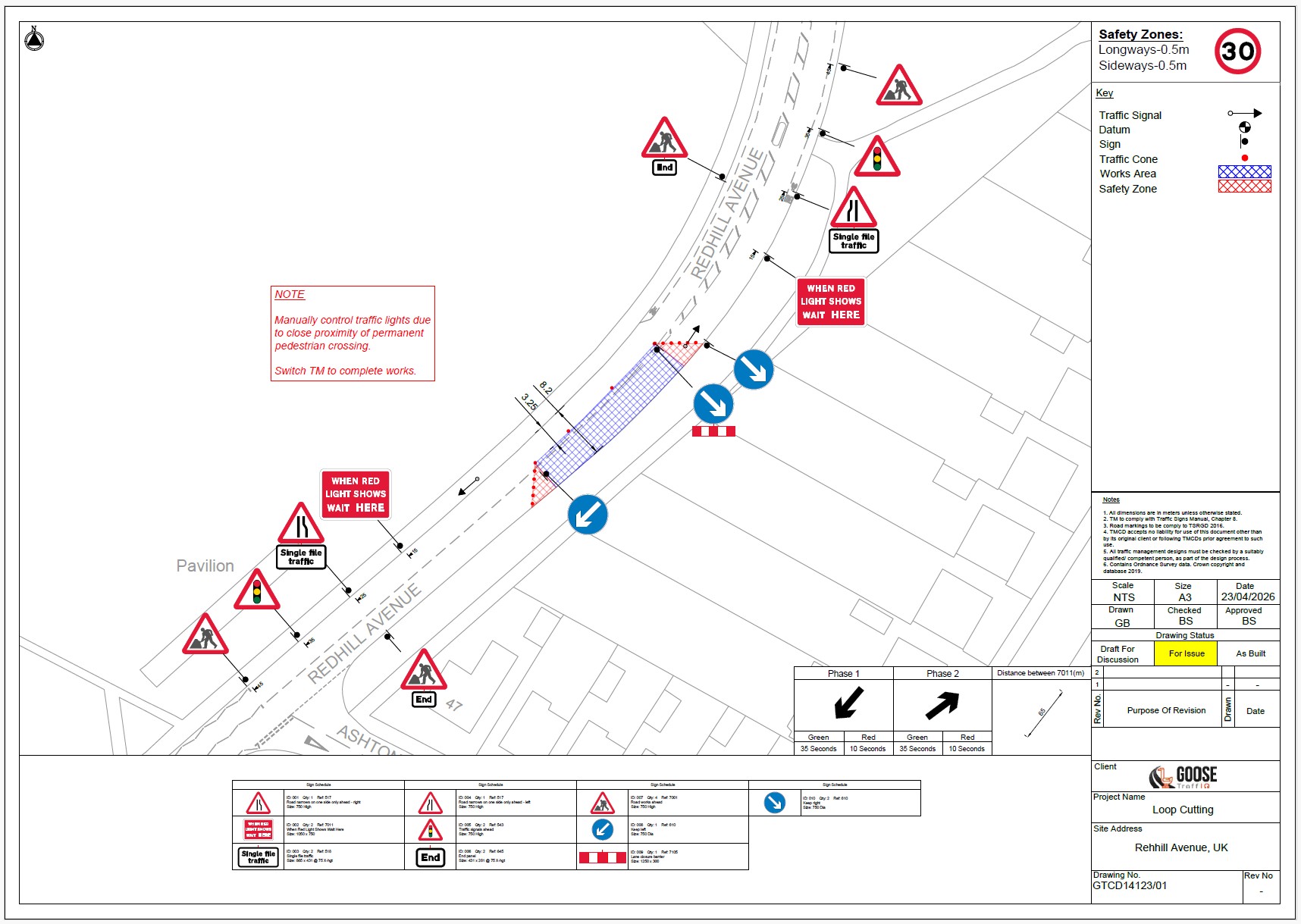

One of our own TM drawings — Loop Cutting, Redhill Avenue, UK.
Proven, durable
vehicle counting

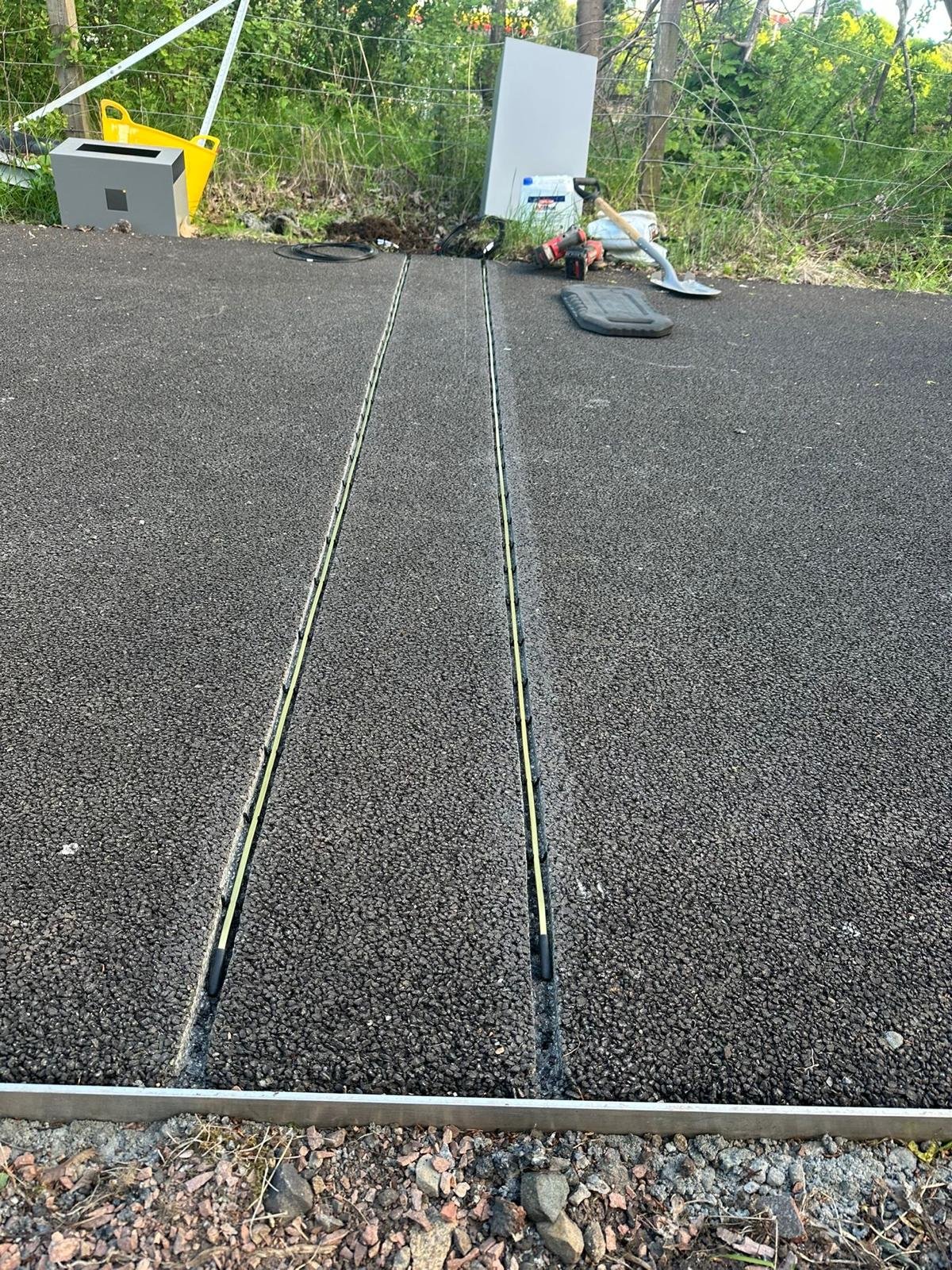

Piezoelectric sensors sit within the road surface and generate a signal as each axle passes over them, giving reliable counts, classification and speed data at a fraction of the disruption of a full excavation. We supply and install RoadTrax BL (Brass Linguini) sensors from TE Connectivity — a proven, widely deployed piezo sensor built for exactly this job.
- New site installs
- Fault rectification and sensor replacement
- Available in multiple sensor and cable lengths to suit the site
- Multiple sensitivity classes for different traffic and load profiles
The proven standard
for vehicle detection

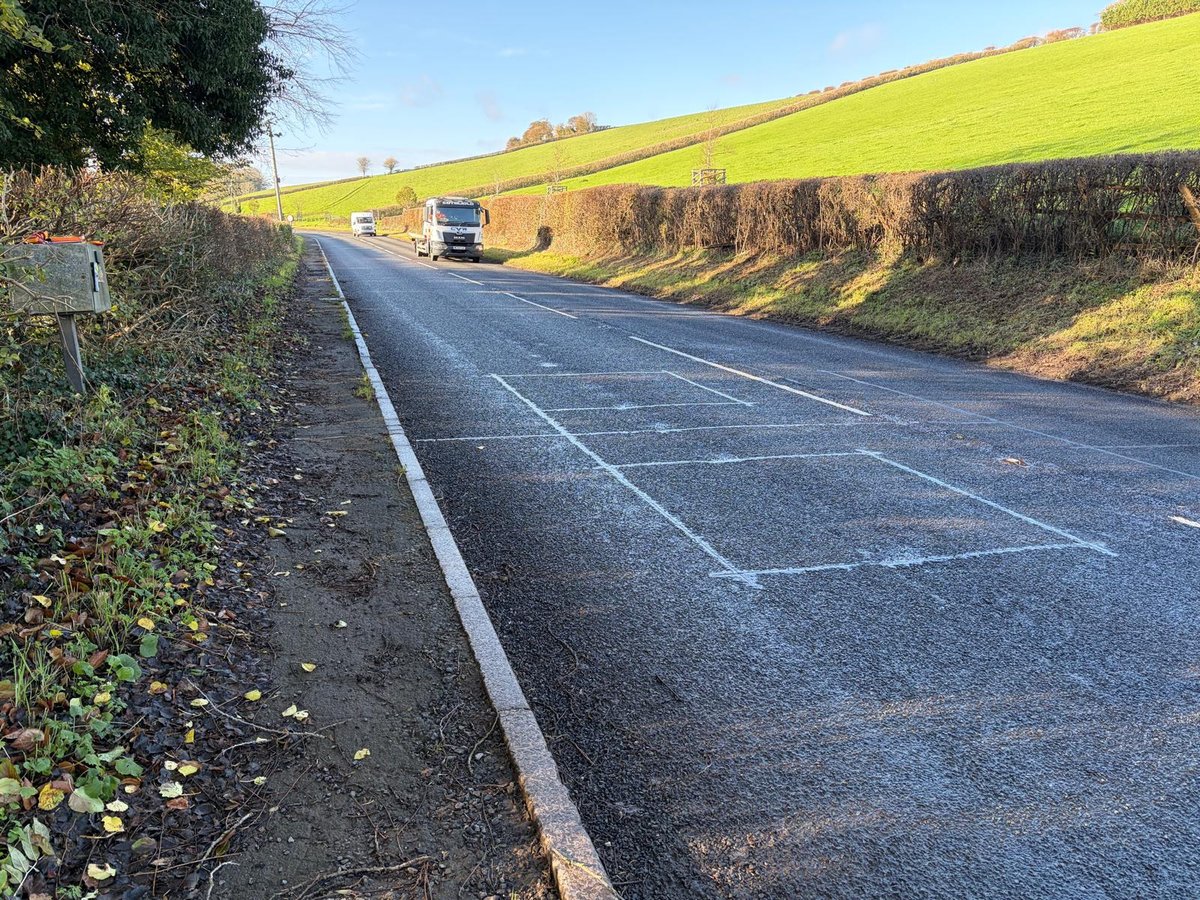

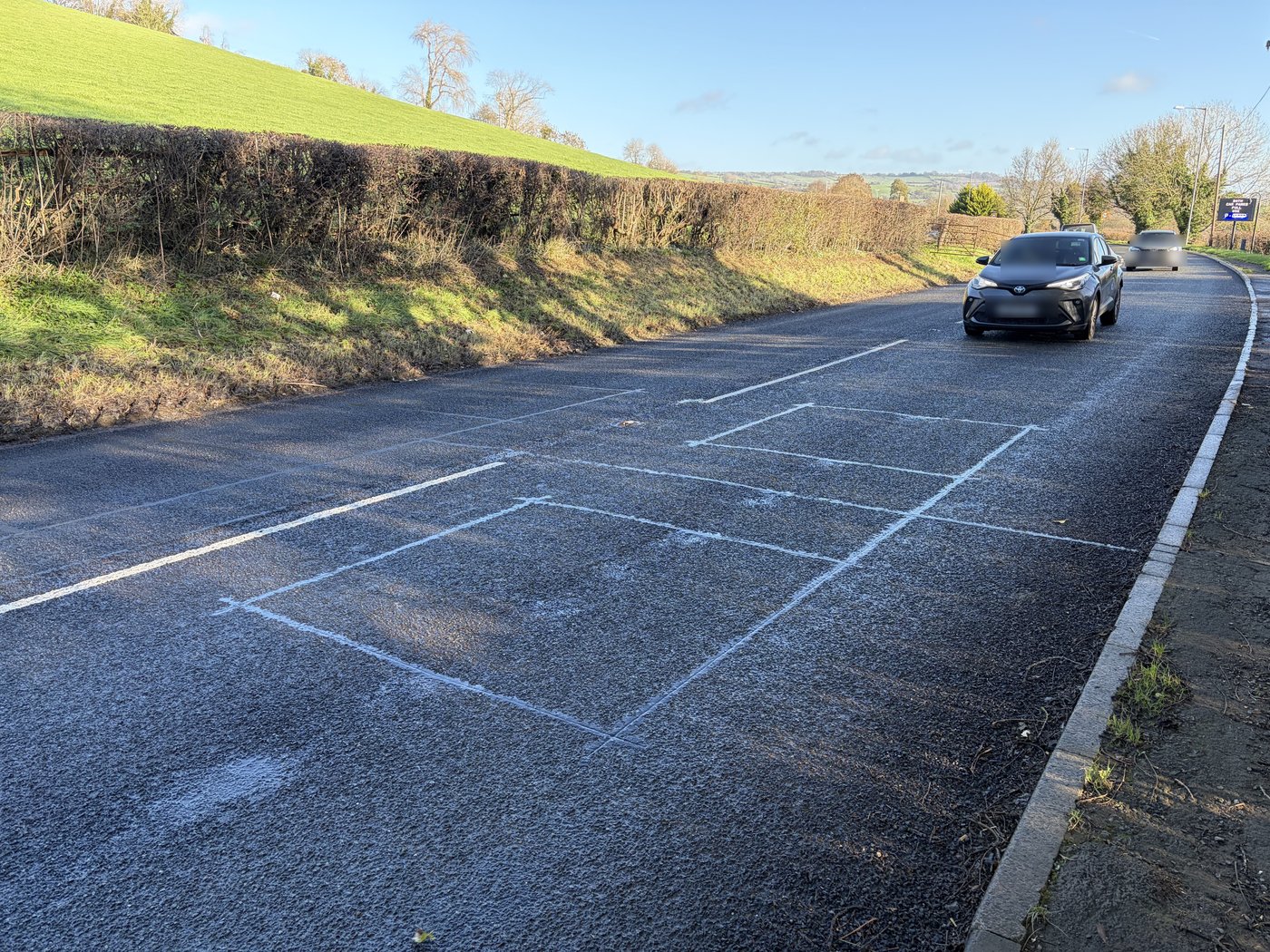

A wire loop cut into the carriageway detects the change in magnetic field as a vehicle passes over it. It's the most widely deployed detection technology on UK roads, and remains the standard choice for reliable vehicle presence detection and counting.
We handle both new-site loop installations and the diagnosis and replacement of faulty or failed loops on existing sites — tracing feeder faults, cutting and re-laying damaged loops, and testing before handover so the site is left fully operational.
- Installed to MCH 1540 — the National Highways specification for detector loops on motorways and trunk roads
- New-site installations and fault diagnosis on existing loops
- Two-part backfill (polyurethane resin and hot oxidised bitumen) for a durable, weatherproof seal
- Compliant installation accepted across the UK motorway and trunk road network
High-accuracy
weigh-in-motion

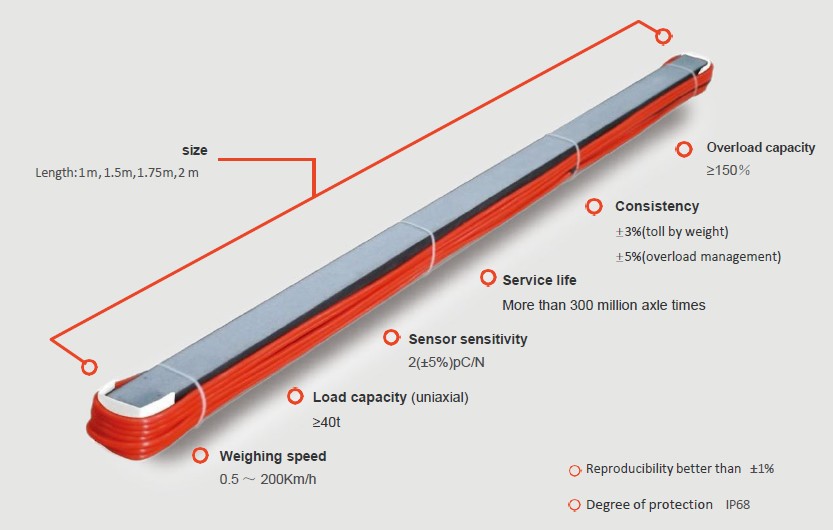

Quartz WIM sensors deliver the accuracy needed for genuine weigh-in-motion applications — axle loads & gross vehicle weight for roadway monitoring — at full traffic speed, with no need to stop or slow vehicles.
- Axle-by-axle weight measurement at traffic speed
- Higher accuracy and durability than standard piezo
- Supports overweight enforcement and freight monitoring
- No vehicle stopping or speed restriction required

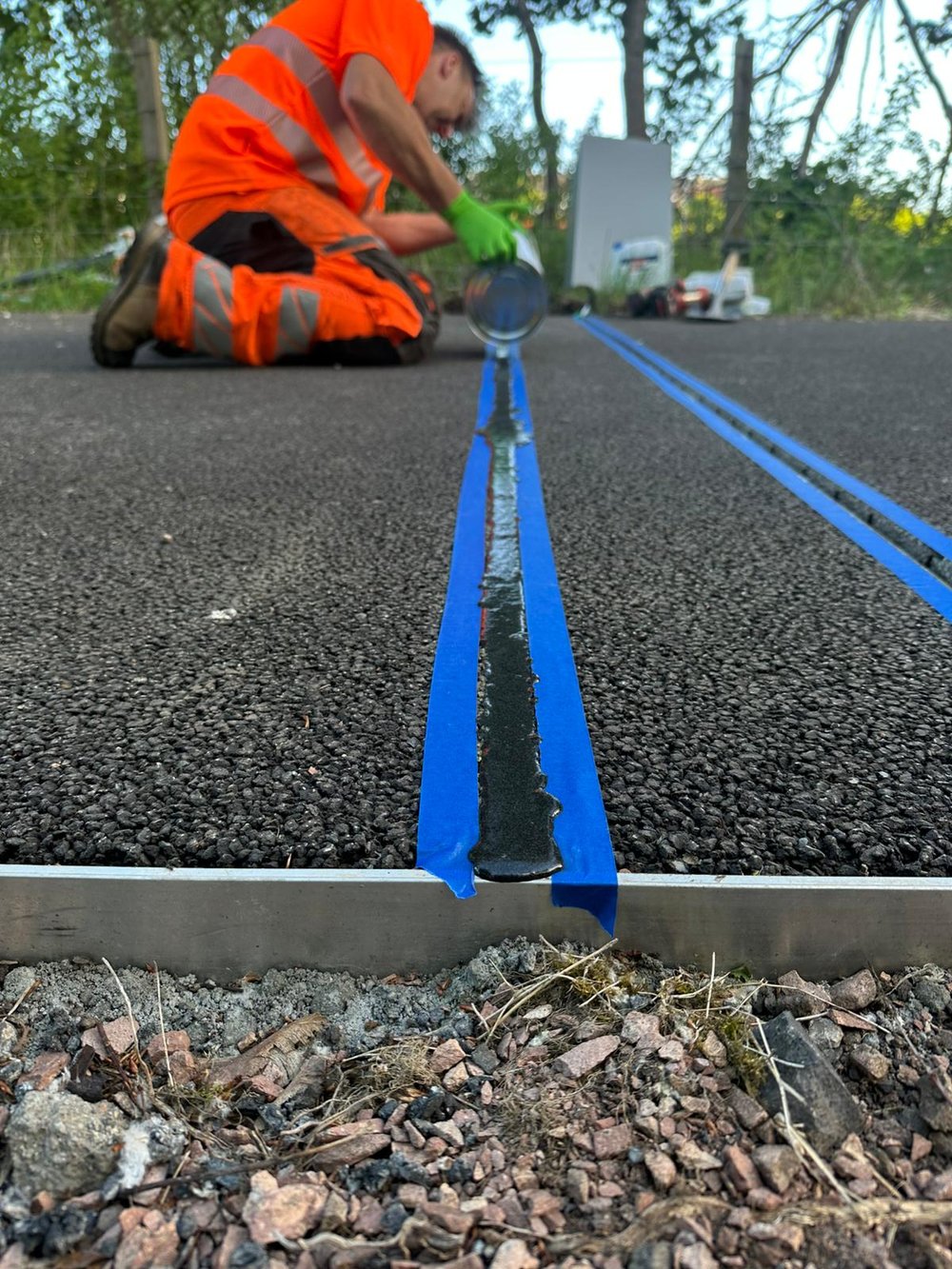

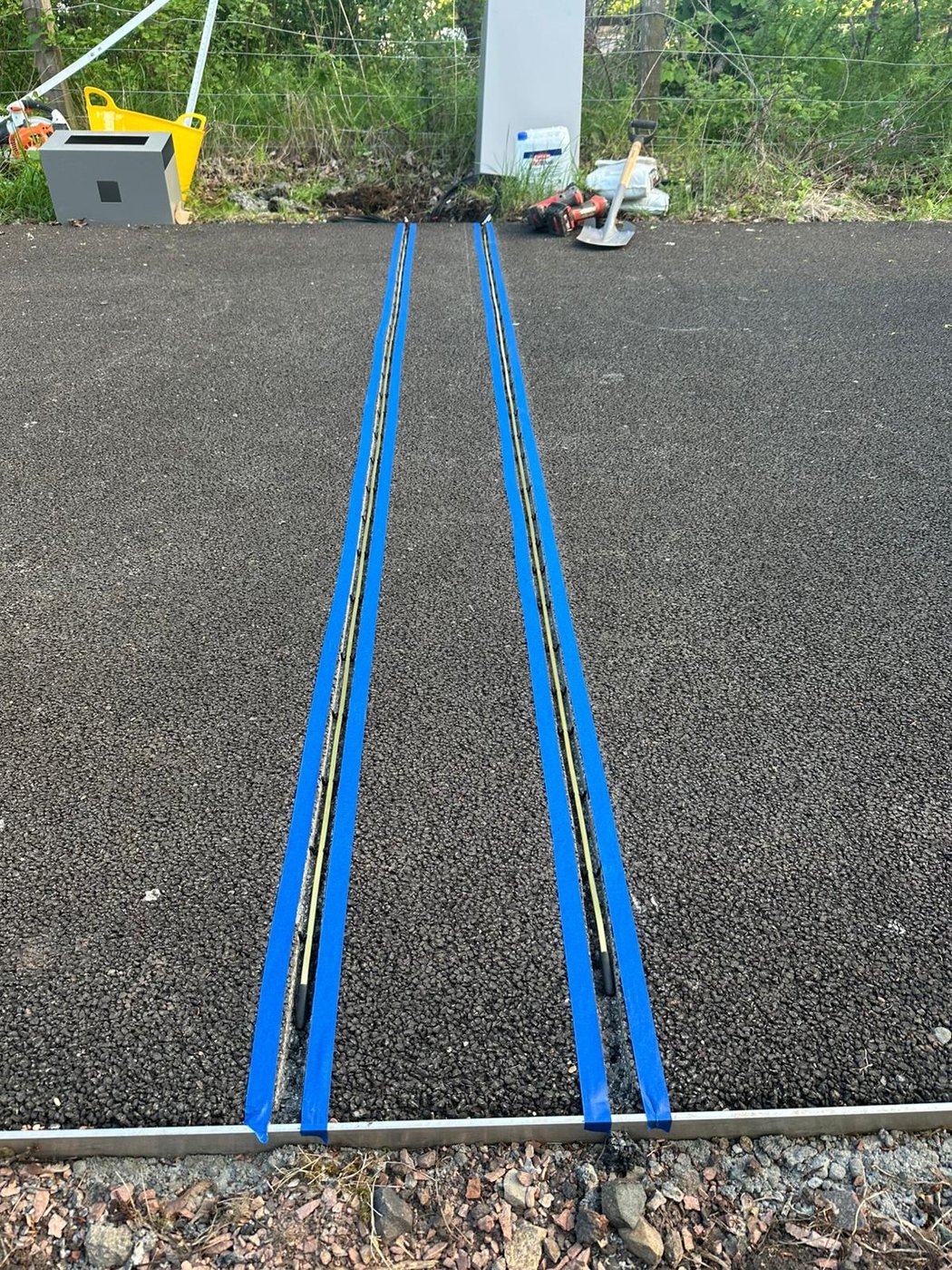

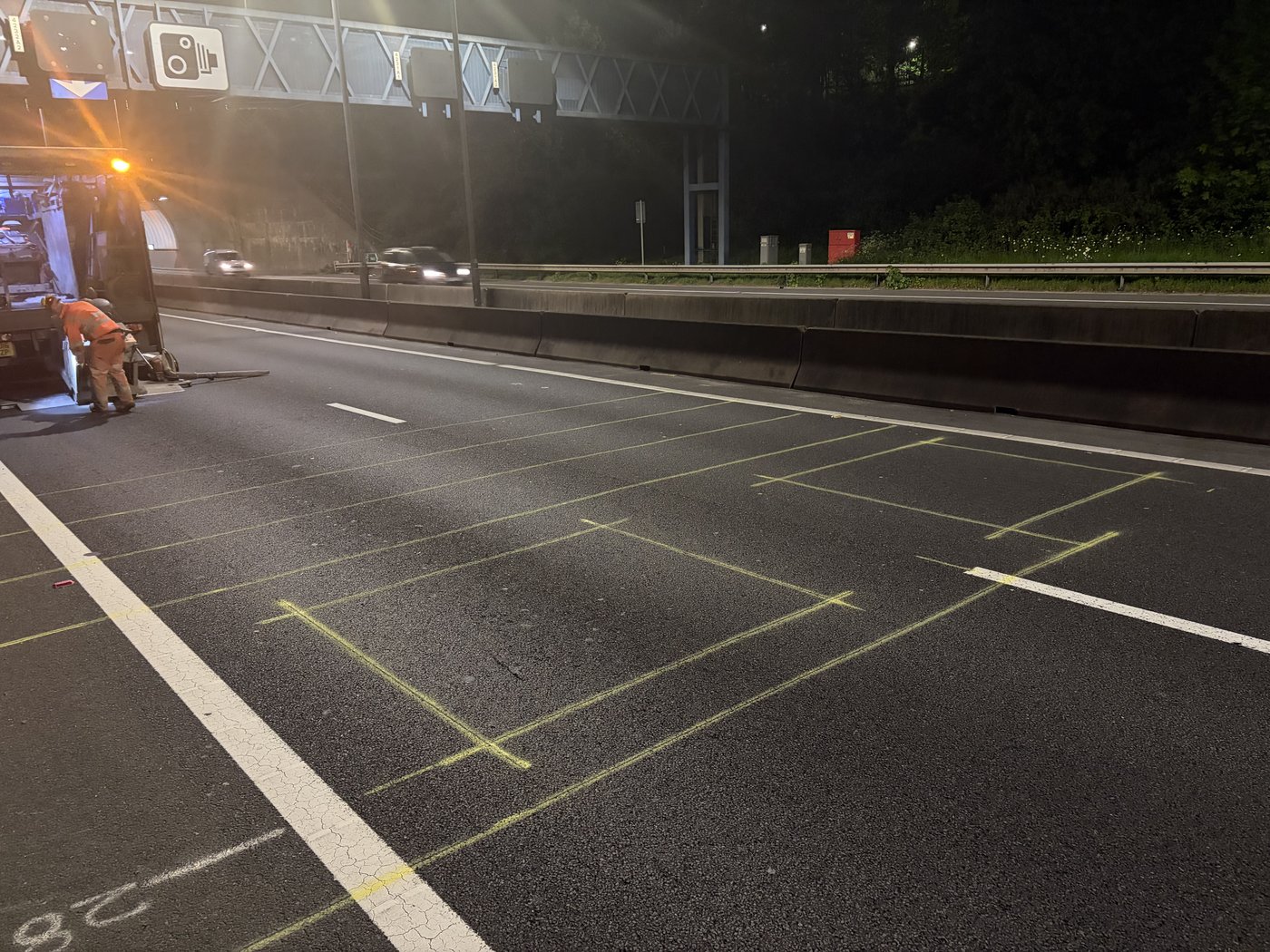

Real installs, real conditions

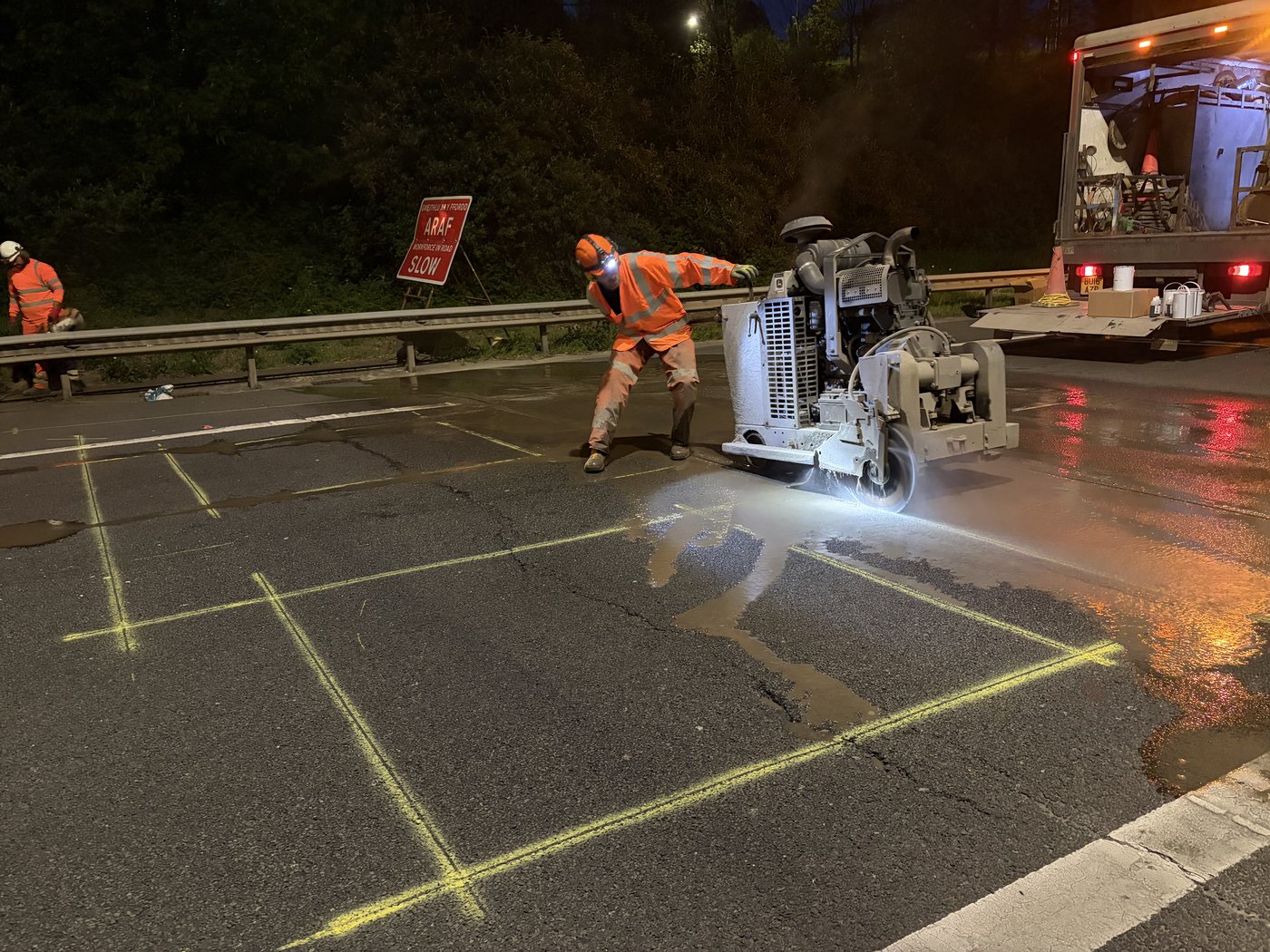

Our field teams work whatever the site and schedule demand — daylight or overnight, wherever traffic patterns allow.
Supply, install, done properly — let's talk.
We'll work around your network's traffic patterns, not the other way round.
